automatic liquid detergent soap filling machine

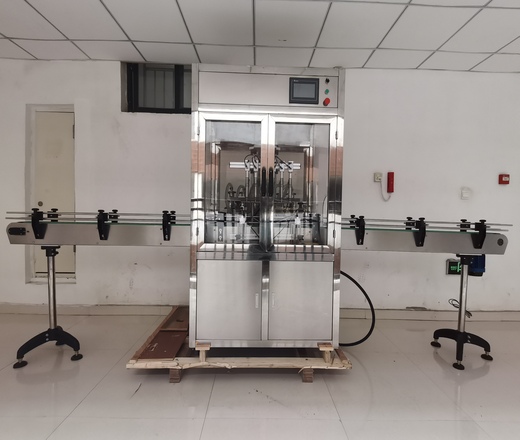

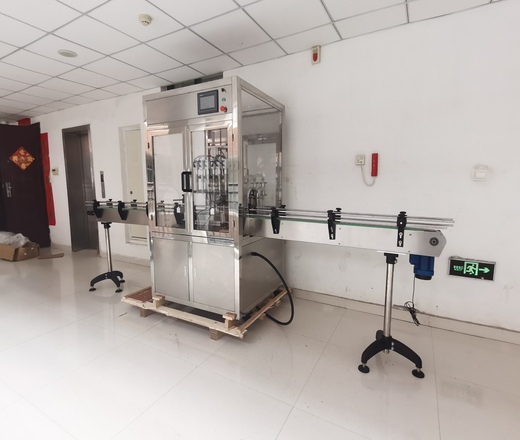

KY-G2-4-6-8T automatic liquid detergent soap filling machine

introduction

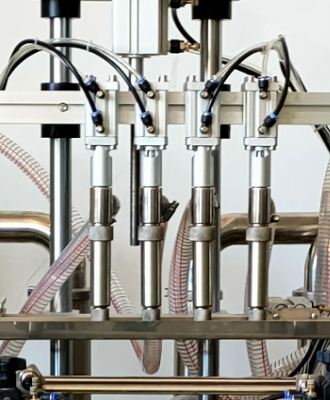

The material will be pumped through the reciprocating piston filling machine under the action of the cylinder. The cylinder of the pumping stroke is adjusted by a signal valve to adjust the required filling volume to achieve precise filling results.

Send email

Chat now

share with:

The filling machine and additional functions are designed and manufactured by our factory and refer to the same foreign machine. This machine is simple and easy to operate, error correction, adjustment, cleaning and maintenance.

It has the functions of automatic conveying, automatic filling, no bottle filling, jammed bottle positioning, preventing dripping, lifting filling, etc. Can be equipped with protective cover.

The material contact part is made of 304 stainless steel.

The material contact part can be customized to be 316 stainless steel.

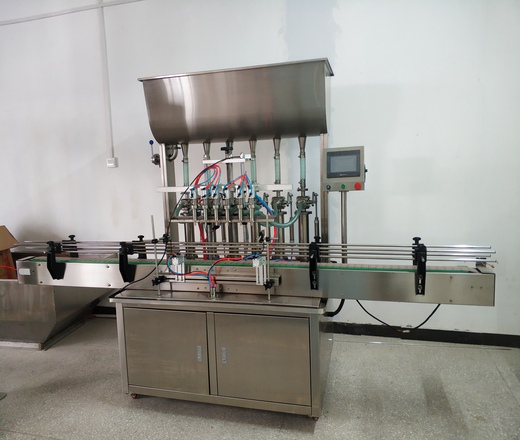

A hopper can be installed. The hopper can be equipped with an automatic liquid level control system.

parameter

Model	KY-G2T		KY-G4T		KY-G6T		KY-G8T
Filling heads	Double heads		Four heads		Six heads		Eight heads
Voltage	220/110V 50/60Hz
Powder	500W		800W		1000W		1500W
Rated air pressure	0.4-0.6MPa (The machine is equipped with a gas tank)
Work efficiency	≈4-16 bottles/min		≈8-32 bottles/min		≈12-48 bottles/min		≈16-64 bottles/min
Filling accuracy	≤±1%
Filling range	20-100ml 30-300ml 50-500ml 100-1000ml 500-2000ml 700-3000ml 1000-5000ml
conveyor	2M	2M		3M		4M

deatails
