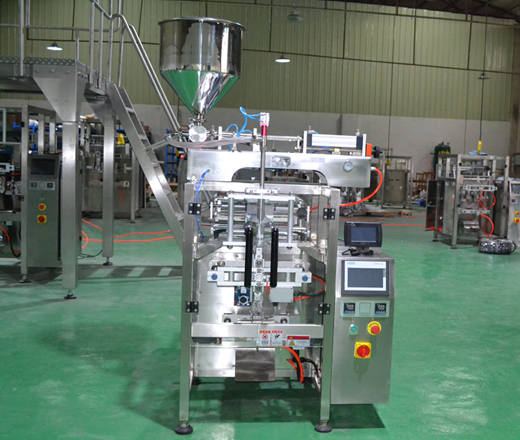

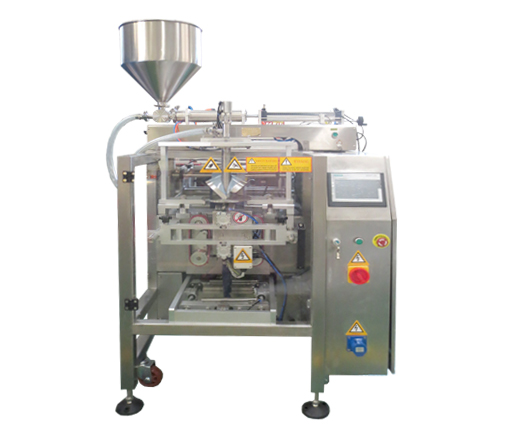

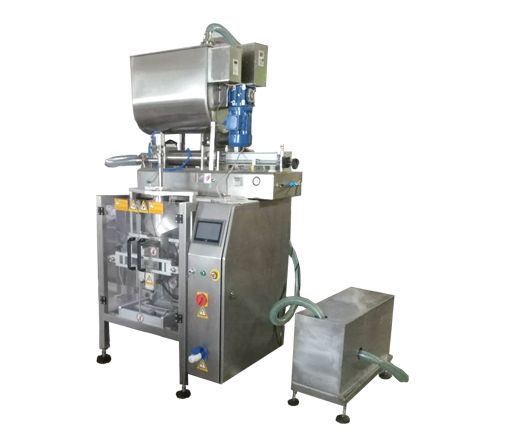

KY-G420 automatic tomato chili paste sauce filling machine

introduction

The automatic paste filling machine is suitable for paste filling in the food industry, daily chemical industry, pharmaceutical industry, ink industry and coating industry.

share with:

features

parameter

deatails

application&packing sample

This filling machine is developed and developed for the filling needs of medium to high viscosity products.

The whole machine is composed of two parts: storage hopper and film roll bag making machine, with simple structure and convenient operation.

The piston and cylinder body of the cylinder are made of polytetrafluoroethylene and stainless steel, which meets GMP requirements.

The filling volume and filling speed can be adjusted arbitrarily, and the filling accuracy is high.

The filling head adopts anti-drip and anti-drawing filling device.

The packaging machine can be equipped with various functional options, such as gussets, punching, etc.

This machine can be modified into an explosion-proof filling system according to customer requirements.

Each stand-alone machine has an all-stainless steel or carbon steel structure to choose from, suitable for various levels of customer needs.

parameter

Our products polish the details carefully

Model	KY-G0420
Bag size	L：60~300mm W：80~200mm
Filling speed	20-60bags/min
Max film width	420(mm)
Film thickness	0.04-0.09(mm)
Pull film method	dual belt tension membran
Air consumption	0.8Mpa 0.5m³/min
Power type	2.2kw 220v 50Hz
Measuring range	10-1000g
Air pressure: 0.4-0.6MPa	0.4-0.6MPa
Dimensions(LWH)	17009501900mm
Total Weight	500kg

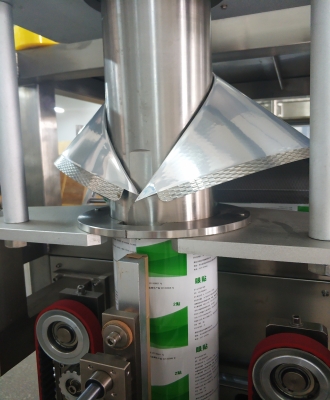

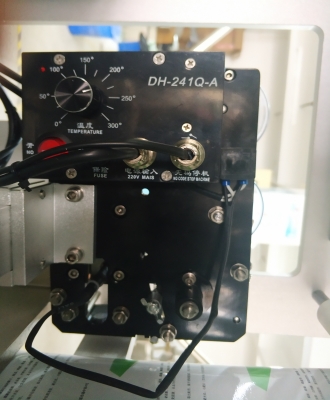

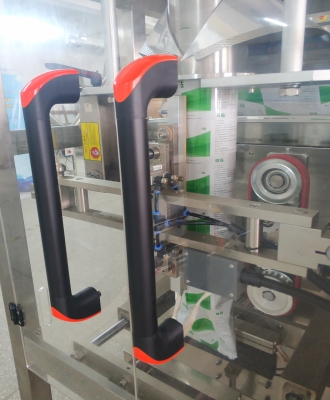

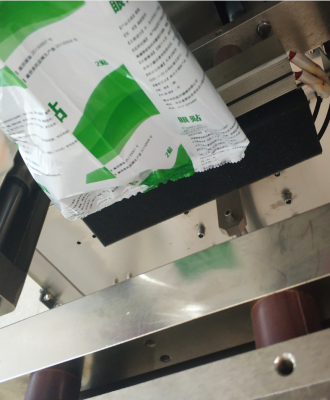

deatails

Related products

Zhengzhou Huayu Kaiyu packaging equipment

sauce packing machine

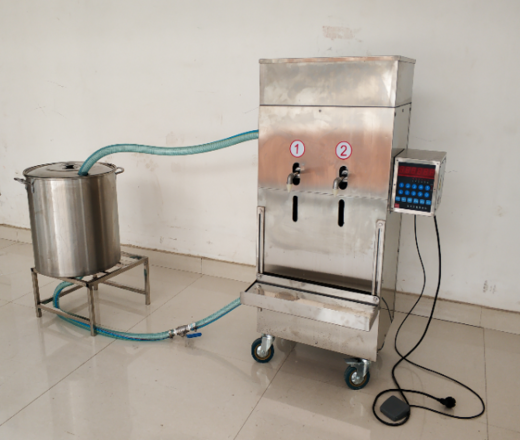

KY-GZL01-2-4-6 Semi automatic water juice soy sauce vinegar filling machine
