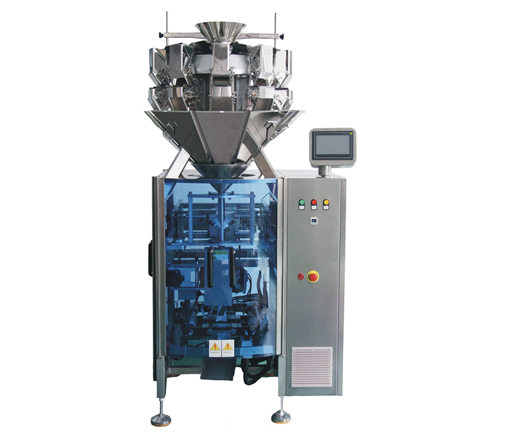

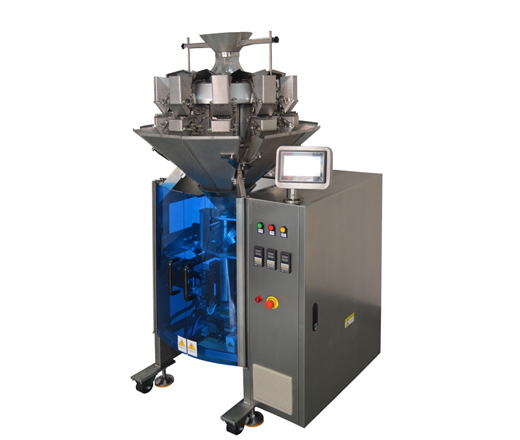

chips packing machine

introduction

suitable to pack fragile products demanding high accuracy, such as puffed food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, cholocate, pet food, small hardware, medicine, etc.

share with:

PLC control with stable，reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling,printing, cutting , finished in one operation.

Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

Double servo control, high precision orientation, size more nicety.

External film releasing mechanism: simpler and easier installation of packing film.

Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .

Parameter

Model	KY-420	KY-520	KY-720	KY-800
Bag length	L:60~300mm	L: 80-350mm	L：100~450mm	L：100~550mm
Bag width	W：60~200mm	W: 100-250mm	W：140~350mm	W：200~390mm
Packing speed	0-70 bags / min	0-60 bags / min	0-45 bags / min	0- 30 bags / min
Max film width	420mm	520mm	720mm	800mm
Film thickness	0.04~0.09mm	0.04~0.09mm	0.06~0.12mm	0.06~0.12mm
Air consumption	0.6Mpa 0.4m³/min	0.6Mpa 0.5m³/min	0.6Mpa 0.8m³/min	0.8Mpa 0.8m³/min
Power source	2.2kW 220V 50HZ	2.2kW 220V 50HZ	4.5kW 220V 50HZ	5kW 220V 50HZ
Dimension (LWH)	1320 x 920 x 1392mm	1500 x1140x 1540mm	1360 x 1630 x 1900mm	1574 x 1395 x 2460mm
Weight	450KG	680KG	900KG	1200KG

Application
