introduction

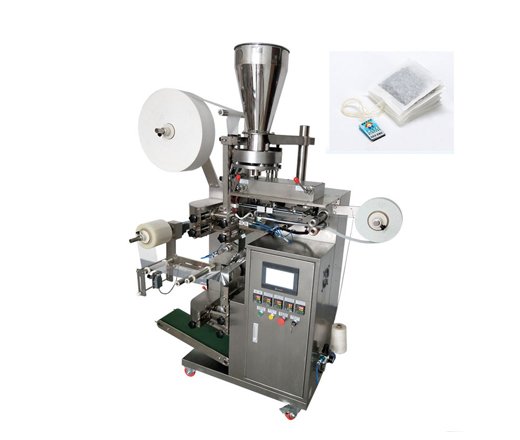

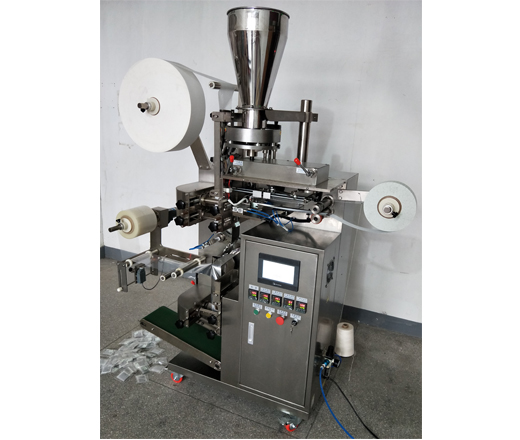

tea bag packing machine is suitable for tea . Such as bulk tea, herbal tea, health tea, flower tea and other internal and external bags are disposable packaging
Features
Parameter
Application

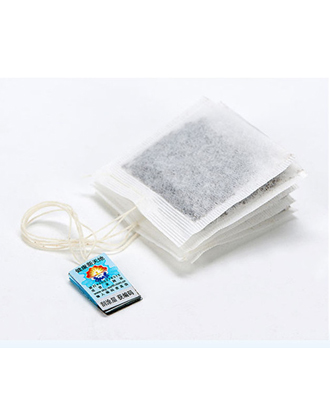

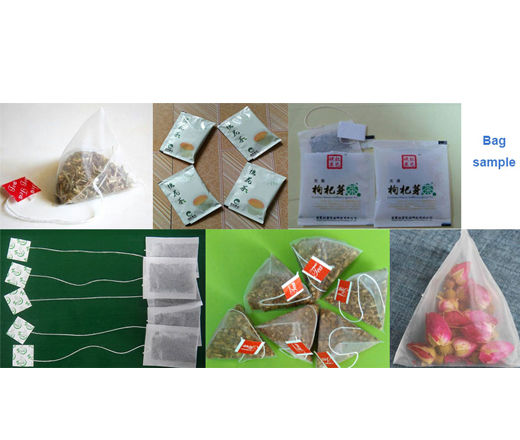

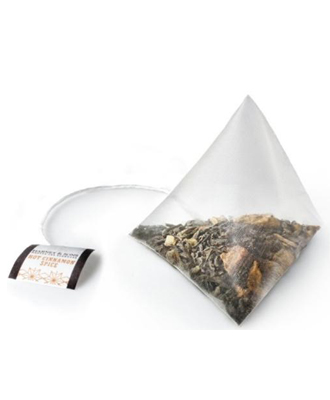

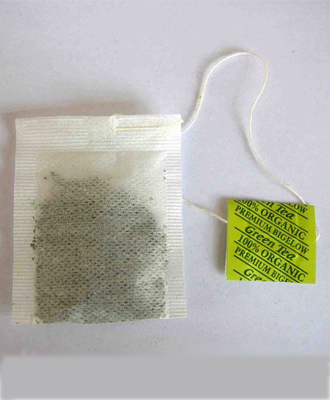

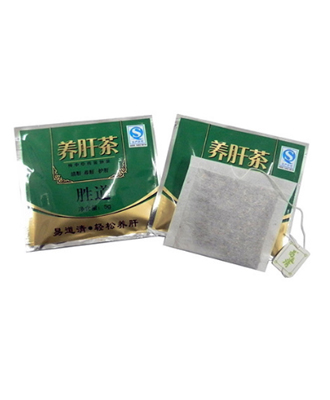

application&packing sample
The outer sealing paper is controlled by a stepping motor, the bag length is stable, and the positioning is accurate;
Using PID to adjust the temperature controller, the temperature control is more accurate;
Use PLC to control the action of the whole machine, display on the man-machine interface, easy to operate
All accessible material parts are made of SUS304 stainless steel to ensure product hygiene and reliability
Part of the working cylinder adopts original imported parts to ensure the accuracy and stability of its work
The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing, etc.
Parameter
Name
Tea Bag Packing Machine
Model
KY-S18
Measuring
Volumetric cup filler
Filling Range
3-15ml
Packing Speed
40-60 bags/min
Tag Size
L:20-24mm,W:40-55mm
Thread Length
155mm
Inner Bag Size
L:50-70mm,W:40-80mm
Outer Bag Size
L:70-120mm,W:60-90mm
Power
220V,50Hz,3.7KW
Packaging Material
Paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea filter paper,thread,tag paper.
Application
