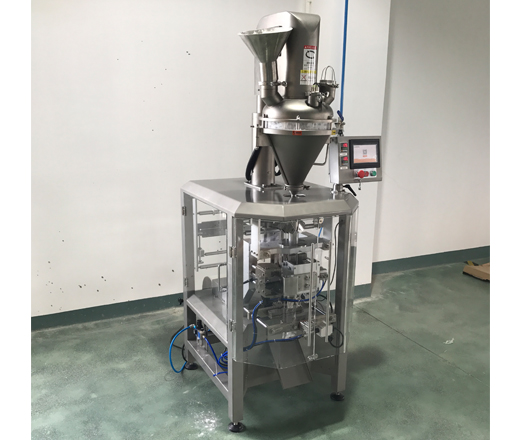

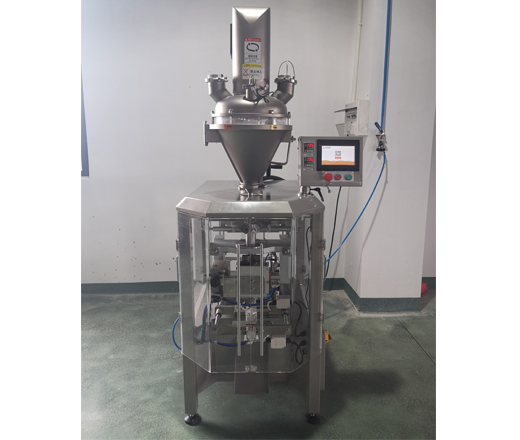

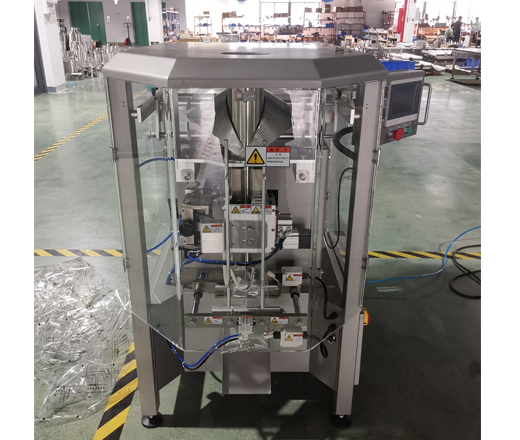

automatic powder packing machine

introduction

It uses a screw for metering, and the screw is driven by a servo motor to rotate to feed. It is used to package materials with general fluidity, such as milk powder, soybean powder, rice flour, soy milk powder, protein powder, detergent powder, etc.

Send email

Chat now

share with:

Machine frame in stainless steel #304, suitable for pharmacy and food products production, simple operation and easy cleaning;

CNC machine processing, high accurate screws design, ensure best precision filling;

Servo motor-controlled system, performance more stable and filling speed faster.

Three-servo control system with smooth and stable performance accuratefilling an defficient capacity;

Machine frame:3mm&5mm thickness stainless steel frame,special mechanical Design to make it run faster and collaborate better;

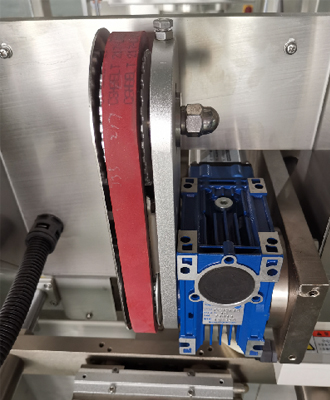

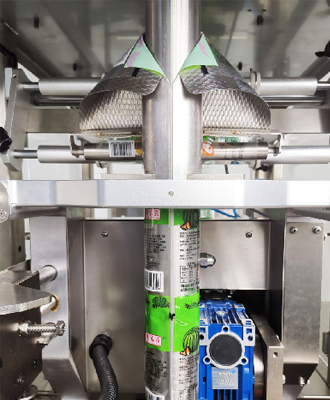

Servo driven film-pulling and film-loading to make the film position more accurate ,And finished bags more beautiful and neater;

Various packaging forms: pillow bag, perforated bag, multi-link bag, perforated bag;

parameter

Our products polish the details carefully

Model	KY-180SF
Bag size	L: 50-180mm W: 50-150mm
Film width	110-320mm
Film thickness	0.05-0.12mm
Packing speed	20-100bag/minute
Filmmaterial	PP、PE、PVC、PS、EVA、PET、PVDC+PVC、OPP+laminatedCPP
Power	2kw
Gross Weight	500kg
Voltage	220V 50Hz
Dimension	1300mm900mm1450mm
Packing size	150012001600mm

deatails
