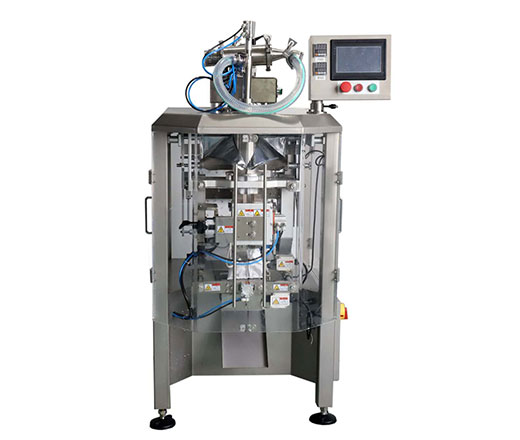

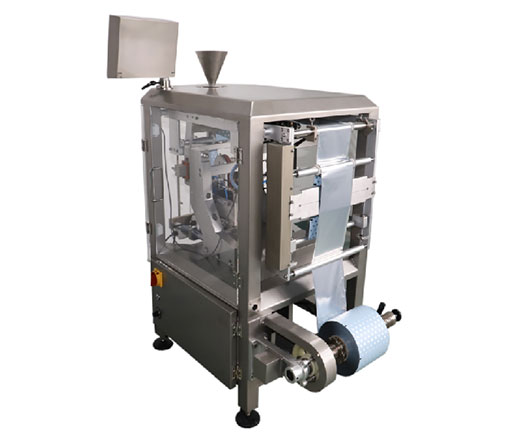

Automatic vertical liquid filling machine
Automatic vertical liquid filling machine
Automatic vertical liquid filling machine
Automatic vertical liquid filling machine

Automatic vertical liquid filling machine

introduction

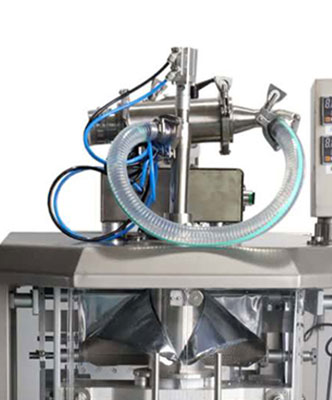

The 180 vertical machine is combined with a piston liquid paste pump to realize automatic filling of liquid paste, like:oil, ketchup, honey, curry sacue and so on.
Send email
Chat now
features
parameter
deatails
application&packing sample
Machine frame in stainless steel #304, suitable for pharmacy and food products production, simple operation and easy cleaning;
The seal structure and material of the pump body are specially optimized and designed to work stably for a long time without leakage;
Pneumatic components drive controller, fast and stable performance, high production speed.
Three-servo control system with smooth and stable performance accuratefilling an defficient capacity;
Machine frame:3mm&5mm thickness stainless steel frame,special mechanical Design to make it run faster and collaborate better;

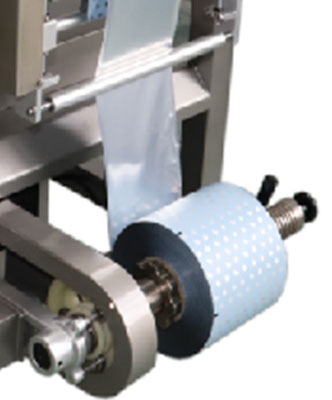

Servo driven film-pulling and film-loading to make the film position more accurate ,And finished bags more beautiful and neater;
Various packaging forms: pillow bag, perforated bag, multi-link bag, perforated bag;
parameter
Our products polish the details carefully
Option devices
Gas flush device/ Gas deflating device/ Safety door switch / Anti-clap and reject device/ Hang-hole punch device / Encoder device
Model KY-180SF
Filling value 10-100ml
Bag size L: 50-180mm  W: 50-150mm
Film width 110-320mm
Film thickness 0.05-0.12mm
Packing speed 20-100bag/minute
Filmmaterial PP、PE、PVC、PS、EVA、PET、PVDC+PVC、OPP+laminatedCPP
Power 2kw
Gross Weight 500kg
Voltage 220V 50Hz
Dimension 1300mm*900mm*1450mm
Packing size 1500*1200*1600mm
