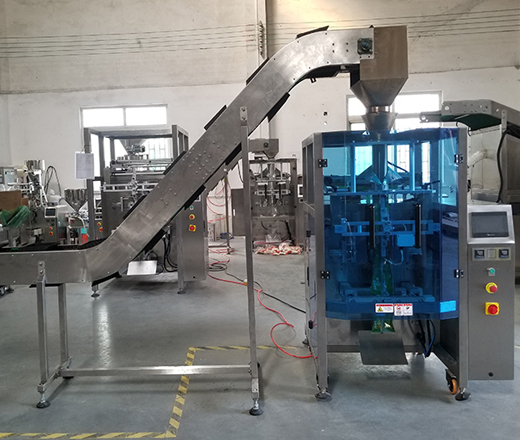

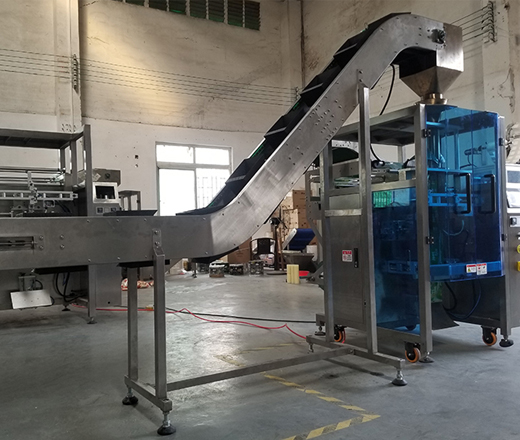

KY-KL420 pouch packing machine
KY-KL420 pouch packing machine
KY-KL420 pouch packing machine
KY-KL420 pouch packing machine

KY-KL420 pouch packing machine

introduction
It is suitable for granular materials, which need to be manually weighed and put into the weighing hopper, and then into the bag making system to complete the bag making and sealing of the finished bag and coding.
Features
Parameter
Application
application&packing sample
Packaging Machine are used in the consumer products industry for a wide variety of packaging applications. The bag material is flexible and typically laminated film. Feeding,Weighting,Filling,Bag forming,Date print and Sealing all in one.
Film driving by servo motor and a sensor tracking through the bag former, top end and back sealing temperature can adjustable.
Operation is more simple by tochscreen and with multilingual version. can stored ten sets different parameters for different products or weight.
Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE, pp, etc.
More funtion such as bag can with euro hole, bag filling of nitrogen, bag linked,etc.
Good for packing rice , seeds , beans, nuts, grain , pet food , salt , detergent powder , etc non-fragile and granular pdoducts.
Parameter
Model KY-320 KY-420 KY-520 KY-720
Measuring Range 150 - 800ml 150-1500ml 150-2000mL 150-4000ml
Packaging Speed 5-70bags/min 5-60bags/min 10-50bags/min 10-40bags/min
Bag Width 50 -150mm 60-200mm 80-250mm 100-350mm
Bag Length 80 - 240mm 80-300mm 80-350mm 100-450mm
Film Roll Width (L)1185*(W)935 *(H)1245mm (L)1217* (W)1015 *(H)1343mm (L)1488*(W)1080*(H)1490mm (L)1716*(W)1260*(H)1820mm
Machine Weight 350KG 450KG 550KG 700KG
Application
